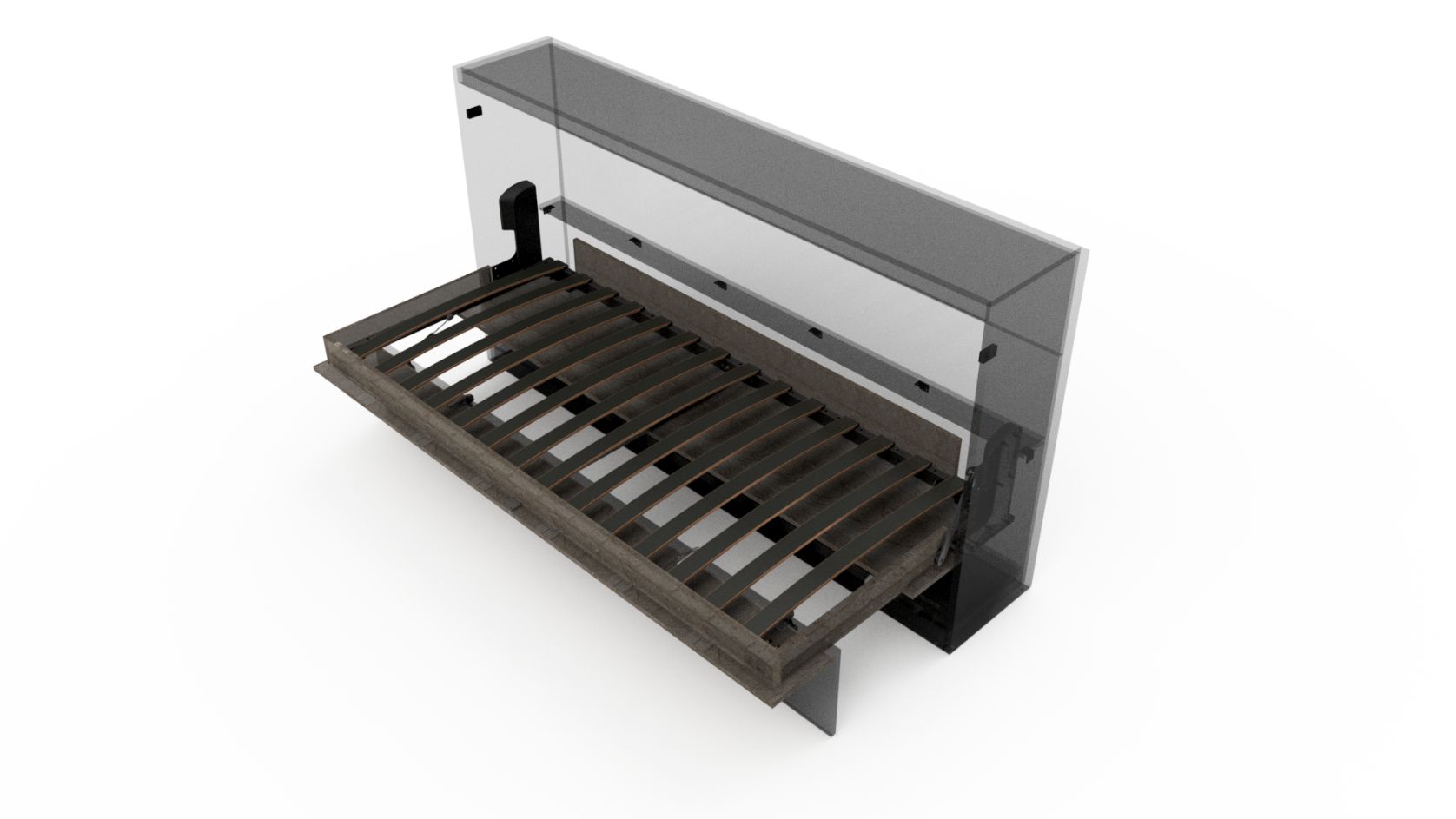

K72 Manual
K72手动壁床系列
Set for various needs, without compromise on functionality.
功能齐全,适合不同需求
Product Information 产品信息
Mattress weight(KG)
床垫重量 (KG)
|
Mattress thickness (MM)
床垫厚度(MM)
|
20(900宽款式 900-wide model) | 150 |
20-30(1200-1500 宽款式) |
备注:
内宽尺寸:左侧板内侧到右侧板内侧的尺寸
5.板材材料建议使用颗粒板或多层板
6.柜体图内标为隐孔的纯为定位作用,没有技术要求
|
Note:
1. Door panels, short cover panel, mattress guard panels, frame panels are assembled along the mechanism assembly process 2. Inner cabinet height: minimum distance between top panel and bottom panel Inner cabinet width: minimum distance between left side panel and right side panel 3. Holes for threaded inserts should be drilled as indicated on the hole technical requirement section view above 4. Cabinet dimensions (outer cabinet dimension, open dimension, door panel distance from ground) are provided in the first two pages of the cabinet drawing 5. Cabinet is recommended to be constructed with low density fibreboard (LDF) or multilayer panel 6. "Positioning holes" indicated in the cabinet drawing are only for positioning purposes, the holes have no technical requirement |
Available Style 可供款式
900X1900(2000) | ||
1200X1900(2000) | 1200X1900(2000)T | |
1500X1900(2000) | 1500X1900(2000)T | 1500X1900(2000)S |
Installation Video 安装视频
K72手动壁床-加工及安装信息
步骤A
+ 查看更多
K72手动壁床-加工及安装信息
步骤B
+ 查看更多
K72手动壁床-加工及安装信息
步骤C
+ 查看更多
K72手动壁床-加工及安装信息
步骤D
+ 查看更多
K72手动壁床-加工及安装信息
步骤E
+ 查看更多
K72手动壁床-加工及安装信息
步骤F
+ 查看更多
K72手动壁床-加工及安装信息
步骤G
+ 查看更多
K72手动壁床-加工及安装信息
步骤H
+ 查看更多
K72手动壁床-加工及安装信息
步骤I
+ 查看更多
K72手动壁床-加工及安装信息
步骤J
+ 查看更多
K72手动壁床-加工及安装信息
安装前
+ 查看更多
K72手动壁床-加工及安装信息
安装排骨条
+ 查看更多
